タッチパネル付きパネルPC（マルチタッチ、シングルタッチ、硝子越しタッチ）
IP66防水のフロントパネル 豊富なカラーバリエーション |
 |

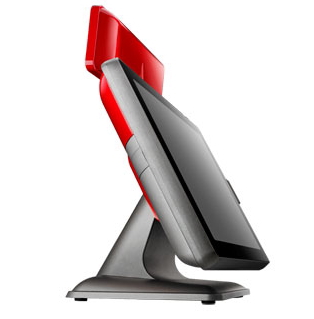

VariPOS 815
- IntelR i5 CPU integrated
- 15" zero-bezel & projected capacitive technology touchscreen
- Flexible architectures for 7" LCD second display, MSR, iButton,
fingerprint, smart card reader
- Aluminum base with adjustable angle & adjustable view angle of
customer display

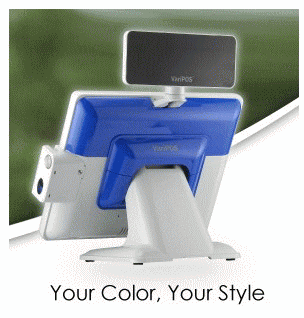

- Customized color matches your shop image
- Front panel IP 66 waterproof Certificated
|
|
|
| CPU |
IntelR i5-2510E 2.5 GHz with L3 Cache 3MB |
|
370 x 300 x 236 mm
|
| Chipset |
HM65 |
|
| System Memory |
1 x SO-DIMM DDRIII 1333, up to 4GB |
Dimension
( Wx H x D ) |
| Display TFT LCD |
38.1cm（15inch）
|
|
| Brightness |
250nits |
|
5.96 Kg
|
| Resolution |
1024 x 768 |
Weight |
| Touch Screen |
True Flat Projected Capacitive Technology / True
Flat 5-Wire Resistive |
|
| Storage HDD |
1 x SATA 6.4cm (2.5”)HDD , SSD (optional)
|
Spec |
|
|
|
 |

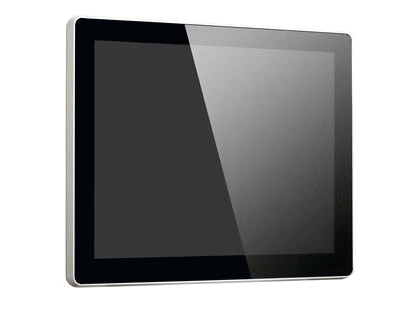

VariPPC 819 19inch
- The latest Intel Qual Core i5 processor
- Up to 8GB memory expandability
- 19" high brightness, wide viewing angle display
- Zero-bezel & projected capacitive technology touchscreen
- Front and Rear enclosure IP65 Certified
- Magic Multi-touch technology
- Flexible, modular accessory option
|
|
| CPU |
IntelR i5-2510E 2.5 GHz with L3 Cache 3MB |
|
446 x377 x 70 mm
|
| Chipset |
HM65 |
|
| System Memory |
2 x SO-DIMM DDRIII 1333, up to 8GB |
Dimension
( Wx H x D ) |
| Display TFT LCD |
19inch 4:3 LED backlight
|
|
| Brightness |
350nits |
|
7.3 Kg
|
| Resolution |
1280 x 1024 |
Weight |
| Touch Screen |
True Flat Projected Capacitive Technology / True Flat 5-Wire Resistive |
|
| Storage HDD |
1 x SATA 6.4cm (2.5”)HDD , SSD (optional)
|
Spec |
|
|
|
 |

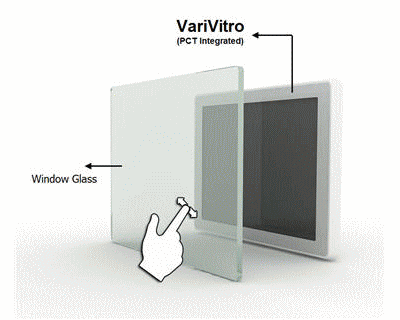

VariVitro タッチスルーガラステクノロジー
10mm厚ガラス越し静電容量タッチパネル付き
- Touch-thru-Glass Technology
- All-in-One Panel PC ready to use
- High Brightness Solution LCD for outdoor usage
- Intel Dual Core CPU for high reliability
- HDD isolated design for easy maintenance
- IP 66 waterproof at front panel
- VESA mount support
- Stylish shapes & customerized color matches your shop image
|
| CPU |
IntelR Pineview D525 (Dual Core) 1.8GHz with L2
Cache 1MB |
|
370 x 287 x 55mm
|
| Chipset |
IntelR Pineview + ICH8M |
|
| System Memory |
1 x SO-DIMM DDRIII 800, up to 4GB |
Dimension
( Wx H x D ) |
| Display TFT LCD |
38.1cm（15inch）
|
|
| Brightness |
400 nits / 1000 nits (optional) |
|
4.7 Kg
|
| Resolution |
1024 x 768 |
Weight |
| Touch Screen |
15" True Flat Projected Capacitive Technology
GlassThickness Max 10mm |
|
| StorageHDDorSSD |
1 x SATA 6.4cm (2.5'')HDD
1 x SATA 6.4cm (2.5”) SSD (optional)
|
Spec |
|
|
|
 |

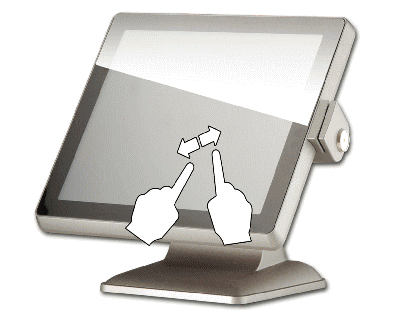

VariTouch マルチタッチ液晶モニター
- Projected capacitive technology (PCT )True flat design
- Supported multi-touch function
- IP66 waterproof at front Panel
- Robust aluminum Housing
- Adjustable aluminium base
- Color changeable
|
| Display TFT LCD |
38.1cm（15inch） |
|
370 x 300 x 236mm
|
| Brightness |
250 nits |
|
| Resolution |
1024 x 768 |
Dimension
( Wx H x D ) |
| Touch Screen |
True Flat Projected Capacitive Technology
True Flat 5-Wire Resistive（USB） |
|
| Compliance |
IP 66 on front panel |
|
4.4Kg
|
| Spec |
|
Weight |
|
|
|
|
|
マルチタッチパソコン パネルPC(15inch19inch)
